4 Inch Ratchet Straps: The Complete Guide to WLL, Standards, and Selection

What Are 4 Inch Ratchet Straps?

A flatbed driver hauling a 20-ton modular home doesn't reach for a 2-inch strap. The sheer mass of the load demands the holding power that only a 4 inch ratchet strap provides. These are the heaviest standard ratchet straps in the cargo control industry, built around a 4-inch-wide webbing that delivers a working load limit (WLL) of 5,400 lbs and a breaking strength of 24,000 lbs in assembly form. Endless loop versions, which eliminate metal hooks, often push the WLL slightly lower to 5,200 lbs while still meeting the same safety margins.

The 4-inch width isn't just a number. It directly translates into larger stitching patterns, thicker thread, and more contact surface area against the cargo. That means less chance of the strap cutting into soft surfaces and more friction to resist shifting under dynamic forces. Compared to 2-inch and 3-inch options, the 4-inch variant sits in a class of its own for over-dimensional loads, heavy machinery, and flatbed applications where DOT regulations require a specific number of tie-downs based on the combined WLL of all straps.

That jump from 3,300 lbs to 5,400 lbs is more than just a 60% gain in capacity. Under FMCSA rules, the aggregate WLL must equal at least 50% of the cargo weight. A single 4-inch strap covers 10,800 lbs of cargo by itself, cutting down the number of straps needed and reducing the time spent on securement. For anyone moving massive items regularly, that math alone justifies the upgrade.

Key Specifications: WLL, Breaking Strength, and Standards

Every 4 inch ratchet strap sold in the US must comply with FMCSA standard 393.104(c), which mandates that the working load limit equals at least one-third of the breaking strength. That 3:1 safety factor is non-negotiable. Manufacturers label the WLL on a permanently affixed tag that also states the strap's length, manufacturing date, and batch number. If the tag is missing or illegible, the strap is out of service — period.

The 5,400-lb WLL is an industry benchmark, but not every 4 inch strap hits it. Some endless loop configurations, especially those from budget suppliers, may top out at 5,000 lbs or even 4,800 lbs. Always check the tag. The breaking strength, meanwhile, should test at 24,000 lbs under straight-pull tensile testing. A strap that claims 24,000 lbs but shows uneven stitching or a poorly heat-sealed end will never reach that number in the real world.

Roadside inspectors from CVSA don't just glance at the strap. They'll measure the webbing width. A strap that has worn below 3.6 inches — a 10% width reduction — is an automatic violation. They'll also check the ratchet handle for binding and any sign of corrosion on the pawl. If the handle won't lock and release smoothly, you're looking at a citation. The manufacturing process plays a huge role here: straps that use high-tenacity, heat-resistant polyester yarn and computer-controlled stitching maintain their integrity far longer than those that don't.

Material Matters: Polyester vs. Nylon vs. UHMWPE

Not all webbing is created equal, and the fiber choice in a 4 inch ratchet strap dictates how it performs over time. Polyester dominates the market for a reason — it offers high strength, minimal stretch, and excellent UV resistance. Nylon was once the standard but has largely fallen out of favor for tie-down straps because it absorbs moisture, which degrades its strength and causes length changes. UHMWPE (ultra-high molecular weight polyethylene) is the newest contender, offering strength-to-weight ratios that make polyester look ordinary, but at a price.

Polyester's low stretch is essential. A strap that lengthens under load allows the cargo to shift and slacken. Nylon's 25% elongation may be fine for towing, but for heavy securement it's a liability. UHMWPE's near-zero elongation and incredible breaking strength would seem ideal, but its surface is slippery; knots and hitch points can fail unless the strap is specifically designed with a coating or bonded insert. Most UHMWPE 4 inch straps are built for aerospace and military applications, not your typical flatbed run.

For the vast majority of users, polyester lashing webbing is the logical choice. It resists rot, doesn't degrade in direct sun if UV-treated, and holds tension reliably. When paired with a properly heat-set finish that locks the weave, the strap won't curl at the edges, making it easier to feed through ratchets and around sharp corners. If the load sits outside for weeks, polyester will outlast nylon every time.

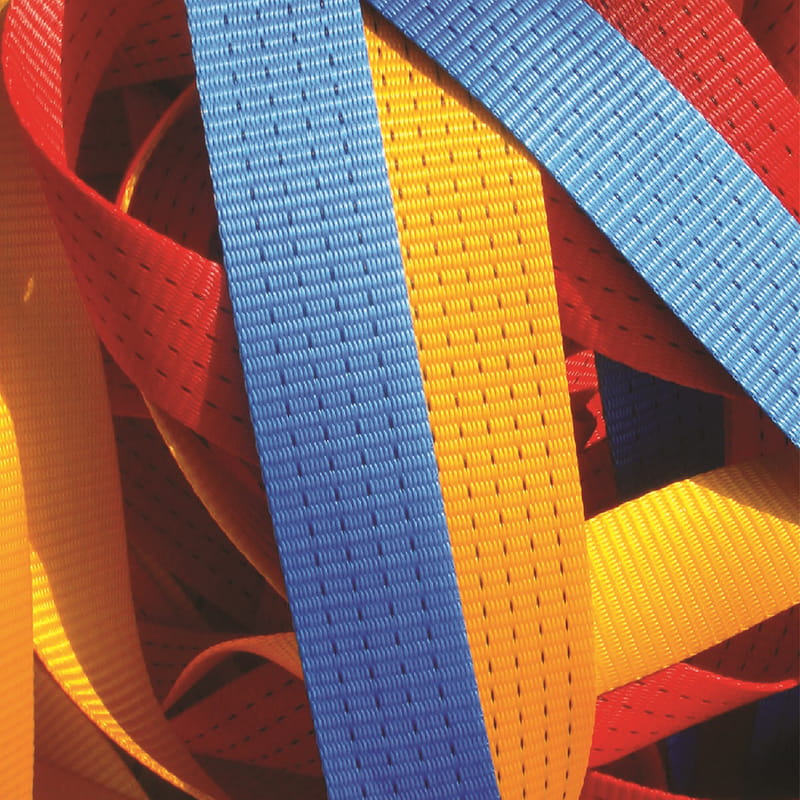

Bulk Polyester Webbing Supplier, Factory

Engineered polyester lashing webbing in bulk rolls or boxes for tie-downs and straps. Custom colors/stripes; batch tensile testing.

View Product →

Choosing the Right Hook: Flat, J, or Wire?

The end fitting on a 4 inch ratchet strap has to match the anchor point on the trailer. A mismatch creates a concentrated stress riser, and under 5,400 lbs of tension, that's a failure waiting to happen. Three hook types dominate the market: flat hooks, J hooks, and wire hooks. Each one solves a different attachment geometry.

Flat hooks are the most common on standard flatbed trailers with a safety rail along the rub rail. The hook's flat steel plate slips into the rail's pocket and distributes the load across a wide area. They're straightforward and get the job done, but the throat opening must be deep enough to grab the rail fully — look for a hook with at least a 2-inch throat depth for a secure bite.

J hooks solve a specific problem. Lowboy and step-deck trailers often lack a continuous safety rail; instead, they have isolated anchor points around the frame. J hooks, with their elongated, wrap-around profile, can grab these points without slipping. The tip of the J should point outward when installed to avoid loading the open gap. As a rule, torque the J hook's retaining bolt to 50 ft-lbs on most trucks to prevent vibration-induced loosening.

Wire hooks appear on container chassis and intermodal equipment. Their slender, springy steel shape hooks into small tie-down openings along the chassis rails. Wire hooks are easy to attach and remove, but they concentrate force on a smaller contact patch. For a 4 inch strap, always select a wire hook rated for the full 5,400-lb WLL — don't assume a hook that fits will hold the load.

Common Applications: Flatbed, Lowboy, and Oversized Loads

A 4 inch strap earns its keep on loads that other straps simply can't secure. Use them anywhere the aggregate WLL requirement pushes past what 2-inch straps can manage, or where the sheer width of the strap is needed to prevent cutting into the load surface.

• Flatbed trailers hauling machinery (e.g., excavators, bulldozers). A single 30,000-lb excavator requires at least 15,000 lbs of aggregate WLL. Three 4 inch straps provide 16,200 lbs and cover the requirement with room for the 50% rule. Angle the straps at 45–60 degrees to the deck for optimal stability.
• Lowboy trailers moving oversized transformers or bridge beams. The low deck height reduces clearance for standard hook placements. J hooks come into play here, often combined with corner protectors to prevent the strap from sawing against sharp edges.
• Shipping containers on chassis. While twist locks hold the container, 4 inch straps with wire hooks provide redundant security, especially for container moves on rough roads or inclines.
• Military and heavy haul transport. Tanks, armored vehicles, and modular building sections often move under strict securement protocols. 4 inch straps with endless loop ends circle the load without metal touching the vehicle, preventing scratches.

In all these scenarios, the number of tie-downs isn't optional. FMCSA table 393.110(d) spells out the minimums: one tie-down for loads up to 10 feet, plus one additional for every additional 10 feet or fraction. When using 4 inch straps, that same table still applies, but the high WLL per strap reduces the total count and simplifies the securement pattern.

Daily Inspection and Maintenance Checklist

A 4 inch ratchet strap might look tough, but a single cut deeper than 1/8 inch across the webbing edge can reduce its breaking strength by 30% or more. Daily inspections aren't optional — they're a federal requirement under 49 CFR 392.9. Walk around the tractor and trailer every morning with these five checks.

1. Check the webbing for cuts, tears, and abrasions. Run your hand along the entire length, both sides. Any cut that exposes the inner yarns is grounds for immediate retirement. Abrasion that removes more than 25% of the surface fibers in a single location also condemns the strap.
2. Examine the stitching pattern. The box-stitch or zig-zag pattern at the hook end must be intact, with no loose or broken threads. If more than two adjacent stitches are missing, the strap goes out of service.
3. Inspect all metal hardware. Hooks must be free of cracks, bends, or corrosion that pit the steel beyond light surface rust. The ratchet pawl and drum should move without binding. Apply a dry graphite lubricant if you feel resistance — never use grease, which attracts grit.
4. Verify the WLL tag. The tag must be present, fully legible, and show the rated capacity. A faded tag or one with a torn edge that obscures any number means the strap can't be used on a public road.
5. Measure the webbing width. Use a simple ruler at the middle and near the hooks. If the width has decreased by 10% or more from the original 4 inches (i.e., below 3.6 inches), the strap has lost structural integrity and must be replaced.

Any strap that fails one of these checks should be cut in half and disposed of. There's no repair for a 4 inch ratchet strap — not by sewing, not by knotting. A "repaired" strap will not pass a roadside inspection and puts everyone at risk.

How to Properly Store and Extend Strap Life

Even the best 4 inch polyester strap degrades if stored carelessly. Three things kill webbing faster than heavy use: UV light, moisture, and chemical contact. The ideal storage spot is a sealed compartment or a canvas bag kept inside the cab or toolbox — anywhere that blocks sunlight and keeps the strap dry.

• Keep straps out of direct sunlight when not in use. Prolonged UV exposure embrittles the polyester fibers, reducing both breaking strength and abrasion resistance. A strap left on a flatbed rack for six months under Texas sun can lose 20% of its original strength.
• Dry the straps completely before storing. While polyester absorbs less than 1% water, the metal components can rust. Rust on the ratchet mechanism leads to seizure. If a strap gets wet, hang it in a ventilated area until bone dry.
• Clean with mild soap and water only. Bleach, solvents, and strong detergents attack the polyester finish. Scrub gently with a soft brush if mud or road grime accumulates, then rinse thoroughly.
• Store at moderate temperatures. Extreme cold (below -20°F) makes polyester slightly less flexible, though it retains most of its strength. Extreme heat above 120°F, especially near a hot trailer deck, can soften the fibers. Aim for the -20°F to 120°F range.
• Coil the strap loosely. Tight kinks and knots create permanent creases that weaken the webbing at those points. Loop the strap in large coils and secure with a velcro band or the strap's own hook if safe to do so.
